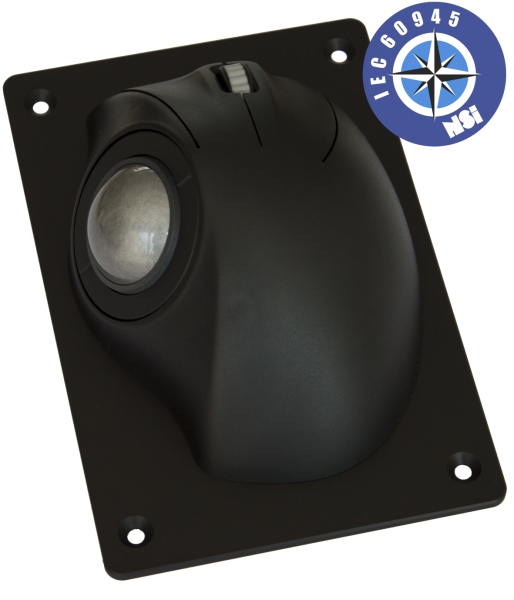

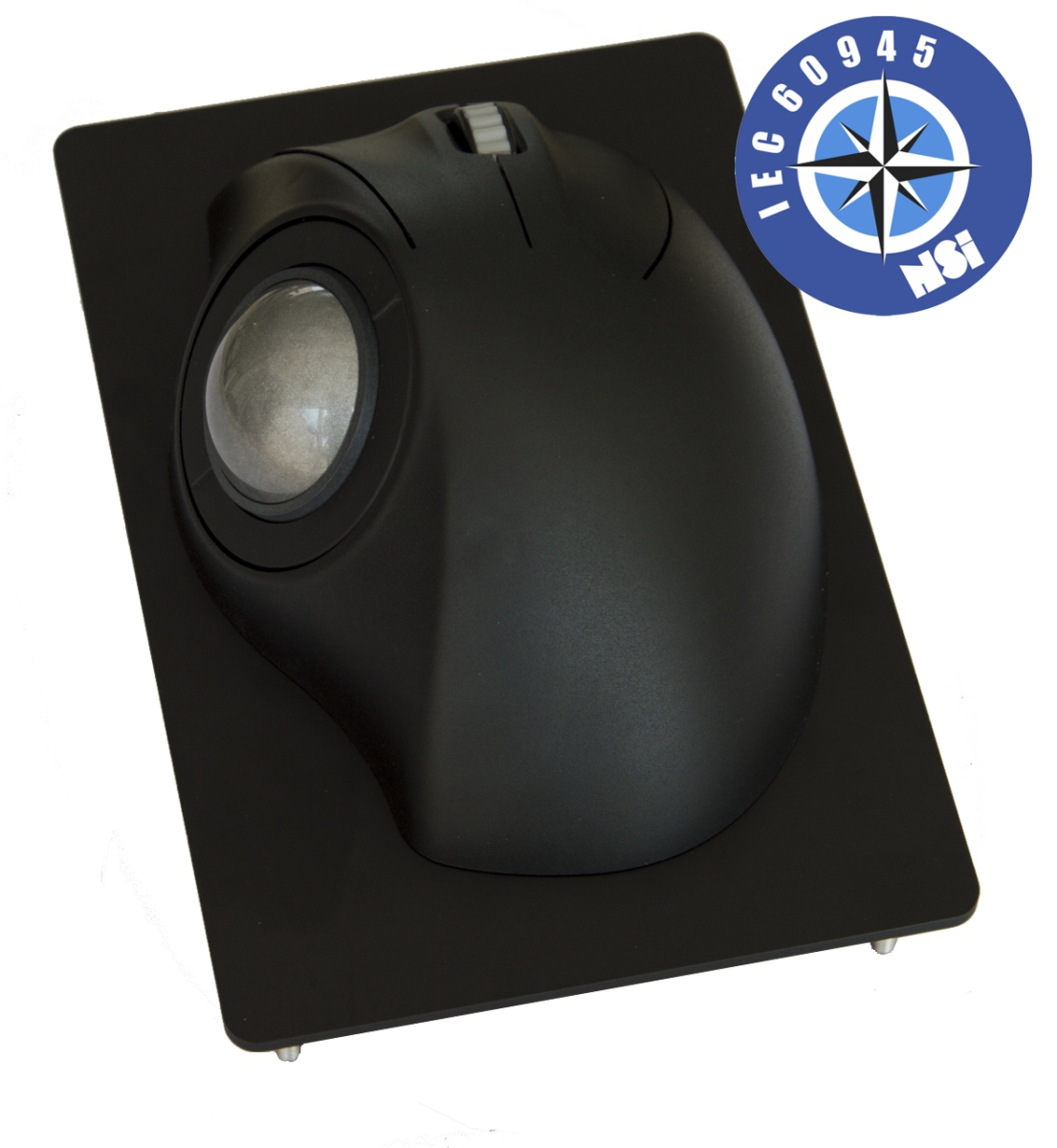

IEC60945 marine ergonomic 38 mm trackballs - panel mount

TBE38-MC3

Sealing to IP65
Infra-red optical navigation technology
Integrated IP65 hall-effect scroll wheel
Integrated left, middle and right switch functionality
Removable ball for easy cleaning
Outputs: USB & PS/2 (auto select)
Smooth operation in rugged environments
No special driver required

Trackball specifications
Weight : ~700 grams
Housing material : PC/ABS
Housing colour/finish : Black/fine-textured finish
Base plate material : Aluminium
Base plate finish : Bead blasted & clear anodised
Mounting position : All angles

Ball size/material : Ø38.1mm (1.5")/Epoxy resin
Tracking force : 20 grams nominal – damper ring seal
20-40 grams – PTFE seal
Ball load :100N (10Kg) maximum downward pressure for 2 minutes @ 20°C
Resolvable ball speed : 30 IPS (inches per second)
Tracking engine : Infra-red optical navigation technology
Removable ring : PC/ABS, black

Scroll wheel specifications
Wheel diameter : Ø25mm
Wheel material : PC/ABS
Wheel colour : Grey
Encoding technology : Hall effect
Magnet strength : N42
Detent-scrolling force : 30 grams nominal
Switch actuation force : 275 ± 125 grams force

Left/right switch

Switch actuation force : 250 ± 100 grams force

Non certified version

This trackball is also available without IEC60945 marine certification :

seeTBE38
