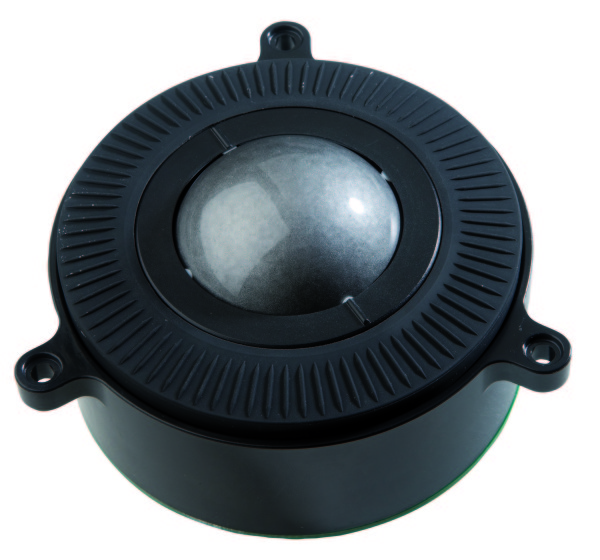

3 axis trackballs
- Z-axis control wheel for scroll/zoom capability
- Removable ball - 38mm or 50 mm ball
- Same functionality as mouse scroll wheel or rotary encoder
- 3 Mounting Points - optimised for panel switch proximity
- Smooth operation in rugged environments
- Various top plate configurations available
- Allows Complete Customisation
- High quality; smooth bearing for Z-axis
- Ideal for applications where feel is critical.
- USB/PS2 (auto-select) or quadrature
3D drawing on request.
Please send me the 3D drawing download for this product.
Utilizing the latest and most advanced laser optical tracking technology, the Z- Series laser optical Trackerballs™ are extremely high specification, contact-less devices, ideal for the most demanding of cursor control applications. The device provides both conventional X and Y-axis cursor movement with an additional Z-axis control wheel surrounding the ball. The laser tracking engine provides accurate cursor motion at all speeds and on virtually any ball, combining the benefits of solid state sensing (no moving parts except the ball). The unit has been designed to be back of panel mounted as part of OEM keyboards and consoles.

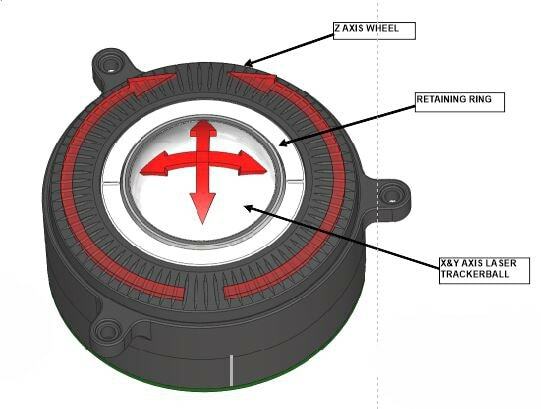

The Z- laser trackball provides conventional X and Y axis cursor movement with an additional Z-axis control wheel surrounding the ball. The Z-axis control wheel provides scroll/zoom capabilities for more effective navigation in complex user interfaces and operating systems (please note the function of the control wheel is software dependent). The control wheel incorporates a high quality roller bearing providing smooth and reliable motion throughout the trackball lifetime. The trackball also features a removable retention ring enabling the user to remove the ball for servicing and maintenance purposes.
