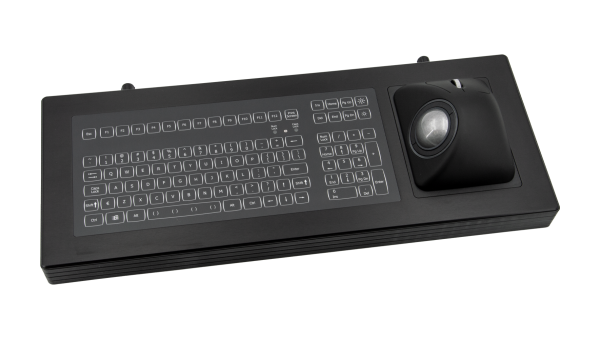

Backlit keyboard with ergonomic trackball - desktop

KSME103
add_circle_outlineAdd to quote
  • IP67 sealed backlit keyboard
  • Robust, high impact polystyrene (HIPS) enclosure
  • Separate numerical-, control- and function keypads
  • Integrated IP68 ergonomic trackball and scroll wheel
  • Removable ball for easy cleaning
  • High brightness LED's with fibre optic technology
  • Low power LED's warrant for a long life
  • No external power supply necessary, keyboard port power sufficient
  • Dimmable backlighting at 8 levels by two dedicated keys
  • Customized backlight control by an external DC voltage, PWM signal or potentiometer is available on request

3D drawing on request.

Please send me the 3D drawing download for this product.

General technical specifications

KEYBOARD
Sealing : IP67 sealed
Keys : 103 short travel switches, tactile feel switches

Key travel / force : 0,3 mm travel and 2,55 N operating force
Output : 1.6 m shielded USB cables
Power requirements : directly from USB port
Operating temp. : -15°C to +60°C
Front layer : Black polyester front layer with embossed
keys, scratch and chemical resistant

SCROLL WHEEL
Wheel diameter : Ø25mm
Wheel material & colour : PC/ABS, grey
Encoding technology : Hall effect
Detent-scrolling force 30 grams nominal

TRACKBALL MODULE
Ball diameter : Ø50.8mm (2")
Ball material : Epoxy resin, metallic grey
Tracking force : 30-80 grams – PTFE seal
Ball load : 200N (20Kg) maximum downward pressure for 2 minutes @ 20°C
Resolvable ball speed : 30 IPS (inches per second)
Tracking engine : Infra-red optical navigation technology
Removable ring style/colour : Bayonet style locking ring/black

MOUSE BUTTONS
Switch actuation force 150 ± 50 grams force

Special version on KSME103 range :

This keyboard is also available with IEC 60945 marine certification

see KSME103-MC1
