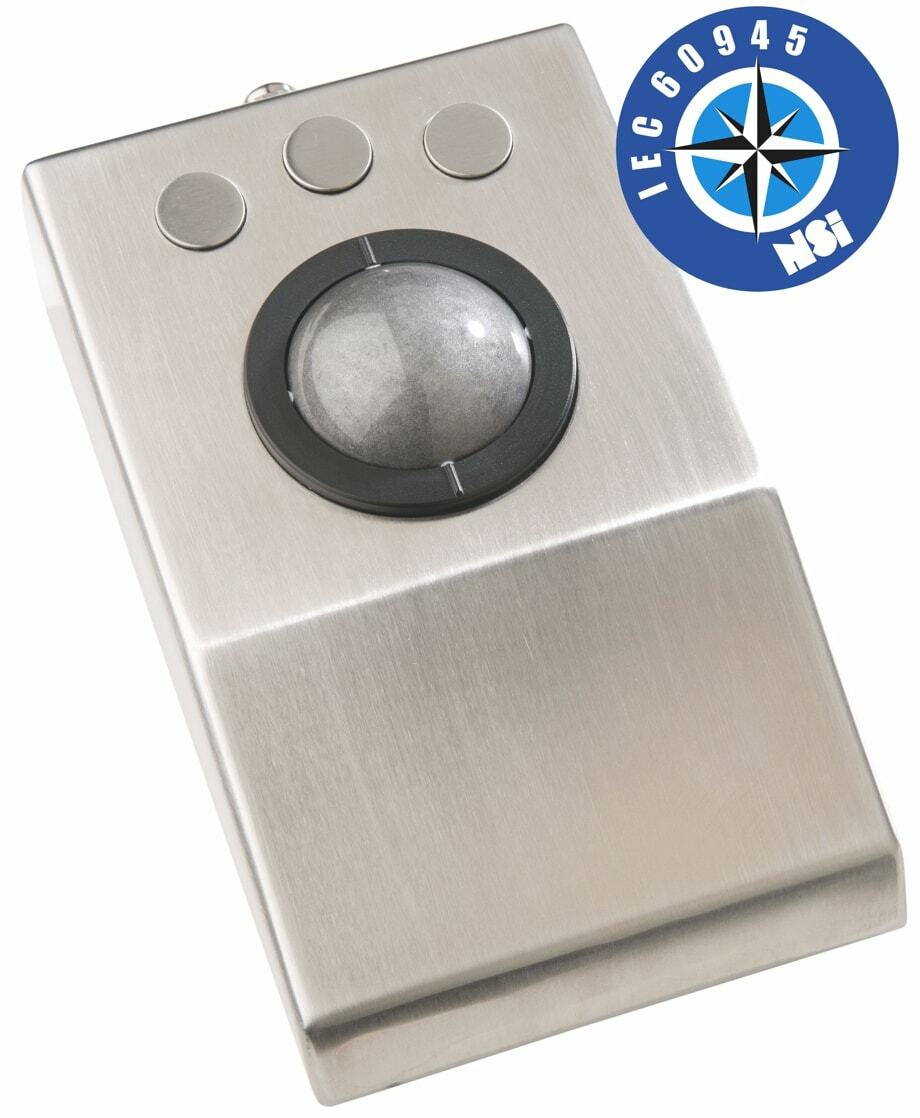

IEC60945 marine IP68 trackball - desktop

add_circle_outlineAdd to quote
  • Certificate of conformity, fully compliant with IEC60945
  • IP68 sealed
  • 50 mm laser trackball - vandalproof
  • Removable top for easy cleaning of bal compartment
  • Stainless steel carrier, switches and housing
  • Combo PS/2 & USB output

3D drawing on request.

Please send me the 3D drawing download for this product.

Sealing : IP65
Carrier plate : brushed stainless steel
Ball diameter : 50,8 mm (2'')
Ball material : polyester
Dimensions / weight : 100 x 120 x 63 cm / 1,3 kg
Lifetime : >= 2 million ball revolutions
Tracking force : nom. 50 grams
Output : PS/2 & USB Combo
Cable : 1 shielded, straight 1,6 m long
Operating temperature range : -10°C to +60°C
Storage temperature range : -25°C to +80°C

Trackball connectivity

This combo PS/2 & USB trackball unit has a 1,6 meter long shielded straight cable ended by a USB type A plug. An adaptor to PS/2 is added. No special device driver is needed, use standard available drivers of your operating system.

Non certified version

This trackball is also available without IEC60945 certification

see TSX50S8
