Vandalproof 50 mm trackball

TBS50F2

IP65 sealed trackballs
50 mm ball, opto-mechanical technology
Highly robust, vandalproof construction and all metal look
Carrier plate made of brushed stainless steel
Stainless steel ring protecting the trackball sealing
Anti-vandal stainless steel switches
Combo PS/2 & USB output

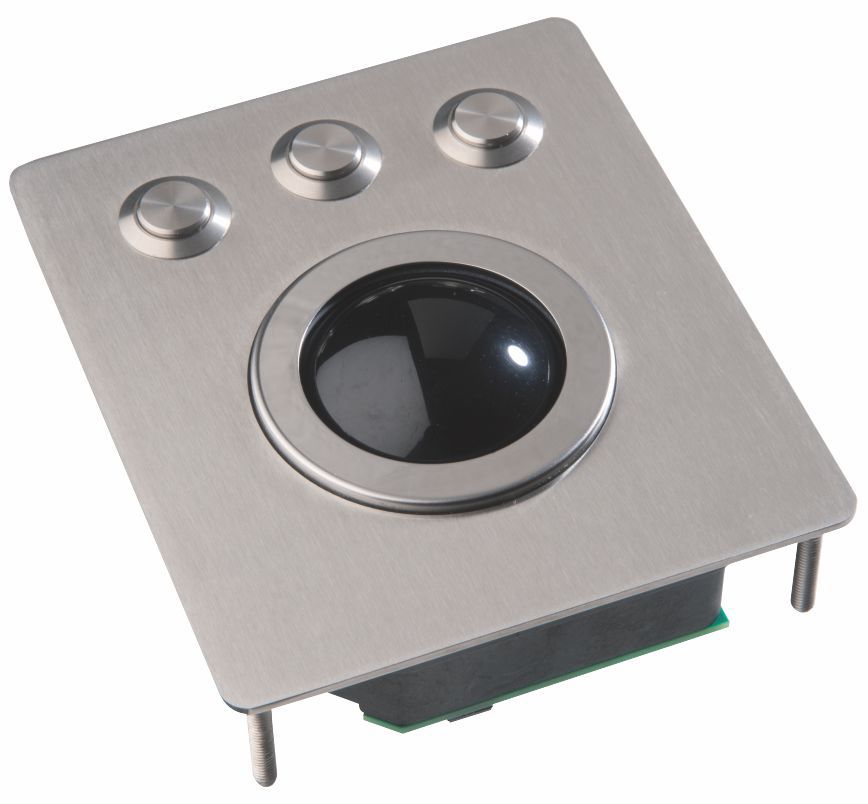

This TBS50F2 is a highly ruggedized trackball and designed for harsh industrial applications, kiosk consoles, navigation controls, etc…

This stainless steel 50 mm trackball unit features a robust, vandalproof construction and all metal look : the carrier plate made of brushed stainless steel, a stainless steel ring protecting the trackball sealing and three anti-vandal stainless steel and IP65 sealed switches. The 50mm trackball unit itself has a black phenolic resin ball for highest resistance to hostile impacts and to scratches and with a sealing grade of IP65 static.

Standard available types :

TBS50F2 : the standard with a black phenolic resin ball

TBS50F2-BT1 : black phenolic resin ball with a black coated topplate.

General trackball specifications

Sealing : IP65 static
Carrier plate : brushed stainless steel
Ball diameter : 50,8 mm (2'')
Ball material : phenolic resin
Dimensions : 100 x 116 x 40 mm
Weight : 0,6 kg / 1 kg
Lifetime : >= 2 million ball revolutions
Tracking force : nom. 50 grams
Output : PS/2 & USB Combo
Cable : 1 shielded, straight 1,6 m long
Operating temp. range : -10°C to +60°C
Storage temp. range : -25°C to +80°C

Push button switches
Sealing : IP65
Material : stainless steel, brushed
Mechanical life : 1 mil. cycles min
Contacts : gold plated
Travel : 1,3mm
Operating force : 4N typ
Operating temperature : -20°C to +60°C

Trackball connectivity

These combo PS/2 & USB trackball units have a 1,6 meter long shielded straight cable ended by a USB type A plug. An adaptor to PS/2 is added. No special device driver is needed, use standard available drivers of your operating system.

Vandalproof 50 mm trackball
