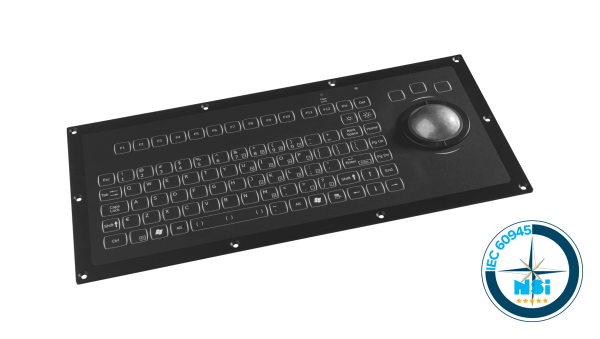

IEC6094 marine ECDIS keyboard - panel mount

KSML92-MC1
add_circle_outlineAdd to quote
  • Certificate of Conformity fully compliant with IEC60945
  • IP67 sealing keyboard
  • Compact layout with integrated numpad
  • With 50 mm industrial laser trackball with removable ball
  • High brightness LED's with fibre optics
  • Illumination of the key legends and contour, the trackball contour and even customer logo's or trademarks
  • Two dedicated keys for up/down dimming
  • Low power LED's warrant for a long life
  • No external power supply needed for the backlight
  • The illumination intensity is dimmable
  • Intelligent intensity setting of "Numlock" and "Capslock" LEDS
  • White backlighting as standard, other colours on request

3D drawing on request.

Please send me the 3D drawing download for this product.

General keyboard specifications

Sealing : IP67 sealed
Keys : 92 short travel switches, tactile feel switches
Key travel / force :  0,3 mm travel and 2,55 N operating force
Pointing Device : 50 mm optical trackball, epoxy resin ball
Output : 1,6 meter PS/2 or USB cable(s)
Power requirements : directly from PS/2 or USB port
Operating temp. : 0°C to +60°C
Front layer : Black polyester front layer with embossed keys,
scratch and chemical resistant

Non certified version on KSML92 range

This keyboard is also available without IEC 60945 marine certification

see KSML92
