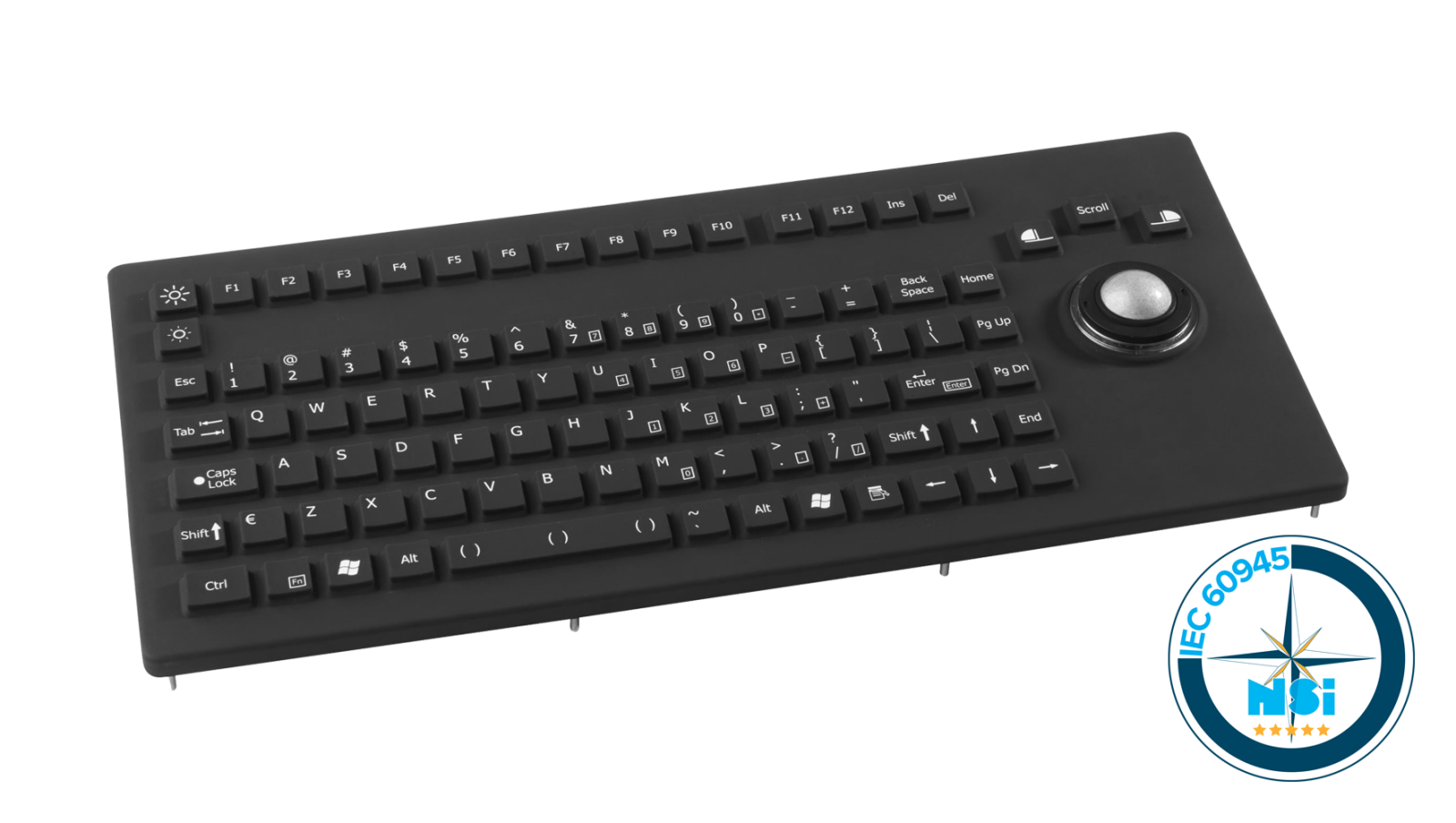

IEC60945 marine silicone rubber keyboard - panel mount

RKCT92-MC1
add_circle_outlineAdd to quote
  • Certificate of Conformity fully compliant with IEC60945
  • IP67 sealed
  • Easy mounting
  • Compact layout, 92 full travel keys
  • Removable 25 mm laser trackball
  • Backlit or non-backlit version
  • Dimmable backlighting at 8 levels by two dedicated keys
  • Low power LED's warrant for a long life
  • No external power supply necessary, keyboard port power sufficient
  • Intelligent luminosity setting of “capslock” LED's

3D drawing on request.

Please send me the 3D drawing download for this product.

General technical specifications

Sealing : IP67 sealed
Keys : 92 full travel rubber keys
Pointing device : 25 mm optical trackball
Power requirements : directly from USB port
Operating temp. : 0°C to +60°C
Switch force : 210 grams
Switch stroke : 2 mm

Other versions on RKCT92 range

This keyboard is also available with IEC60945 marine certification :

see RKCT92
