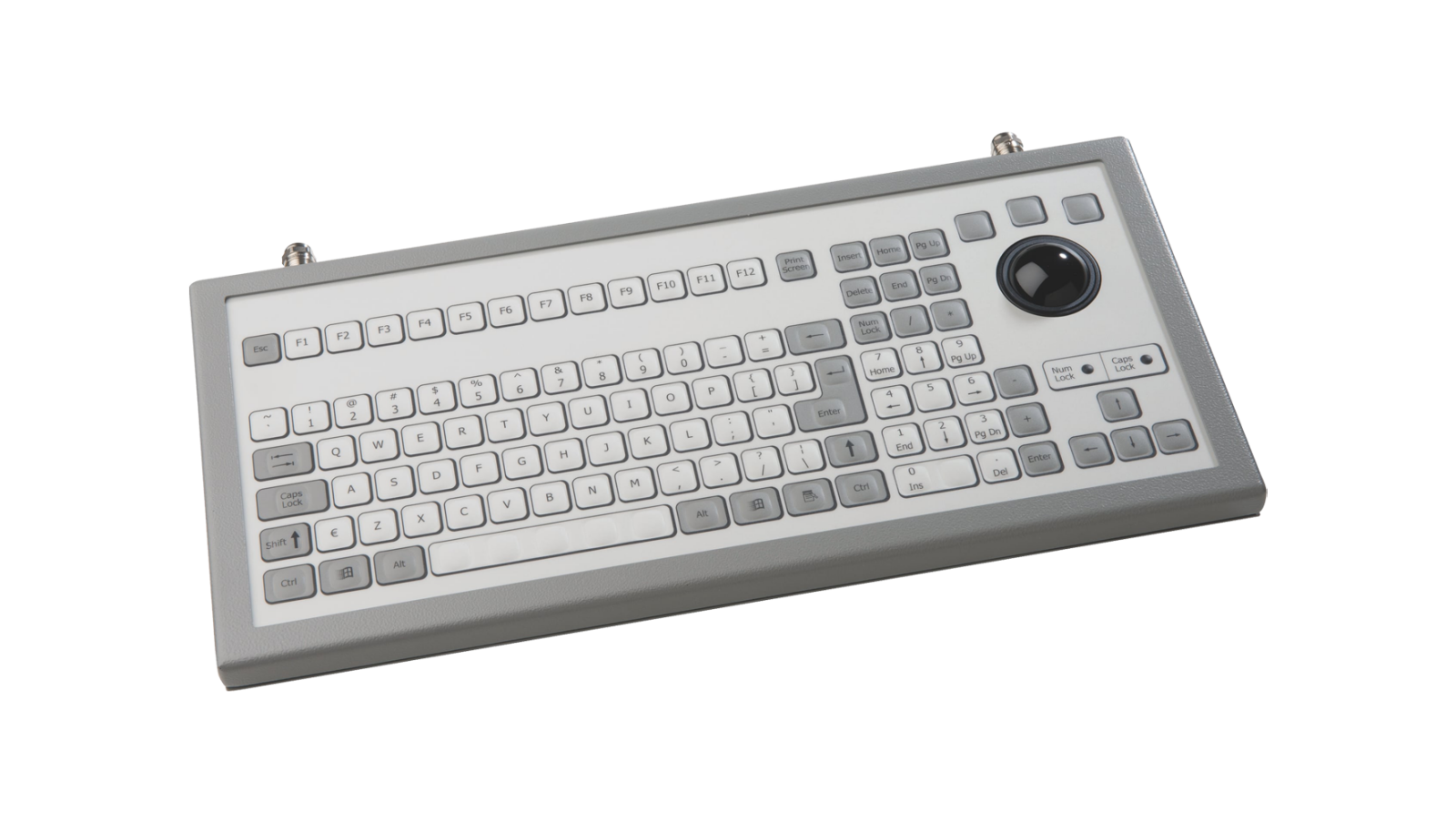

Membrane IP65 keyboard with trackball - desktop

add_circle_outlineAdd to quote
  • IP65 sealed membrane keyboard
  • With industrial trackball for an accurate and precise cursor control
  • 106 membrane tactile keys
  • Full MF (multi-functional) keyboard with separate numeric-, cursor- and control keypads
  • Will fit into 19" rack drawers (1HU)
  • Robust steel enclosure

3D drawing on request.

Please send me the 3D drawing download for this product.

General technical specifations

Sealing : IP65 sealed
Keys : 106 tactile membrane keys
Pointing Device : 38 mm trackball
Output : 1,6 m. PS/2 or USB cable(s)
Power requirements : Directly from PS/2 or USB port
Operating temp. : 0°C to +60°C

Other standard keyboard versions :

Keyboard connectivity

The PS/2 keyboards are supplied with two 1,6 m long shielded straight cable ended with 6 pin mini DIN plugs. The USB versions are supplied with one 1,6m long shielded straight cable ended by a USB type A connector.
